RCF M 20X Desktop Digital Mixer
Out of stock
Unavailable for purchase
The RCF M 20X is a recallable desktop digital mixer. Boasting some powerful features despite its compact, desktop design. Offering 20 analogue inputs, 14 output channels, a touchscreen interface, and wifi control.
Complete with a comprehensive set of multitrack recording and playback capabilities.
Powerful Yet Compact and Simple to Use
RCF has designed the M 20X mixing desk to give you a great range of features in an easy-to-use, compact and lightweight desktop-sized mixer.
As a result, every function you could need is only one or two steps away. This gives you complete control over your live sound in one of the most compact mixers available.
RCF M 20X Desktop Digital Mixer Key Features:
- 20 Analogue Inputs
- 16 High-Quality Remote-Controlled Mic Preamps
- 4 Line Inputs
- 12 Balanced Outputs + Phones
- 20-Tracks SD Card Play/Rec
- 24 x 24 CH USB Audio Interface (24-Bit/48 kHz)
- 11 Motorised Faders
- Smooth User Interface with 5" Touchscreen
- AES Digital Output
- LAN/WiFi Remote Control
- Fully Recallable
- Compact and Lightweight - Only 8kgs
Designed For Professional Use
Despite its small size, from the moment you lay hands on the RCF M 20X digital mixer, you'll know this is a serious bit of gear.
Featuring touring grade metal and reliable electronics. The M 20X boasts incredible durability. Perfect for life on the road.
Premium quality components for the connectors and controls. Offering you great functionality and peace of mind. They'll stand the test of time and heavy use night after night.
What's more, with its universal voltage power supply, you can use this digital mixer anywhere in the world. So you can take your show wherever you want. Plus, with its small size, the RCF M 20 X is the ideal mixing desk for travelling.
Super Fast Workflow
Every function and parameter on the M 20X is reached in one or two steps so you get the results you want when you want them.

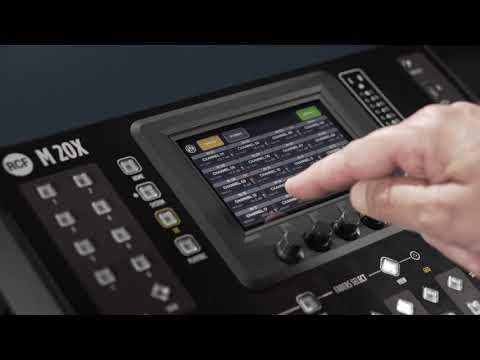

A responsive, 5" capacitive touchscreen is on board. This offers intuitive navigation through all features.
You can even pair the touchscreen with an external tablet with the RCF M 20X to expand your control options.
Versatile Programming Options
Eight user keys featuring versatile programming options.
Giving you instant control of scene selection, play/record transport, tap tempo and a variety of user interface shortcuts.
Eleven motorised faders are on installed on the RCF M 20X mixer. Designed for precise control over your mix with instant visual feedback. Furthermore, the faders are specially designed for minimal movement noise.
You also have four layers of fader assignments. Giving you immediate control over input channels 1-10 and 11-20, FX returns and outputs. By hitting the Fader View button you can see all fader details at once.
Three Recording Options
With the RCF M 20X digital mixer, multitrack recording of your live shows is easier than ever.
Coming with the onboard USB audio interface you have 24 track, 24 bit, 48 kHz low-latency performance across all inputs.
You can also record all 20 inputs in multitrack WAV format directly onto a local SD card. You can then playback your recordings right there on the mixer without ever using a computer.
Last but not least is the USB drive stereo recorder which handles many file formats. Recording straight onto a USB drive and acting as a multimedia player.
Enhanced FX Engines
Dedicated to internal FX engines, the RCF M 20X desktop mixer features four buses.
All the FX engines feature a variety of algorithms. Matching your specific needs at any show so you sound great every time.
Furthermore, you can even put one reverb on some inputs and use a different reverb on other sources. This is so you can get the depth and atmosphere of your live sound with precision.
RCF M 20X Desktop Digital Mixer Effect List:
- Reverb - Hall, Plate, Room
- Delay - Stereo, Modern, Vintage, Dual, Early Reflections
- Modulation - Chorus, Flanger, Tremolo
M20 MixRemote App
A great aspect of the RCF M20 X digital mixing desk is its remote control functionality. Making it even more practical and user-friendly.
Available on both iOS and Android formats, the RCF M20 MixRemote is a dedicated app giving you even more intuitive controls over your live sound.
You can set permissions to that only selected users can adjust parameters, eliminating any potential funny business, too.
Several methods of connecting the app to your M20 X mixer allow you to work in a way that suits you:
- Wireless connection via external WifiAccess Point connected via LAN
- USB tethering to nan Android tablet
- Wired to an iOS or Android tablet (via LAN adapter)
- WiFi Dongle - which supports a maximum of two clients
- You can also drive the User Key functions remotely by MIDI via the use of a MIDI-USB interface for another control method.
Full Live Mixing and High-Quality Recording
Taking care of all facets of your live mixing and giving you some great options for recording. The RCF M 20X mixing desk is the perfect partner for live performance.
Buy the RCF M 20X digital mixer for a compact, desktop-friendly, mixing desk. Offering functionality and performance beyond its size and class.
RCF M 20X Desktop Digital Mixer Specifications:
Electronic Specifications
- Frequency Response: 20 Hz -20 kHz
- Dynamic Range, Analogue to Analogue: 109 dB A-Weighted
- THD+N, 0dB Gain, 0dBu Out: < 0.02% A-Weighted
- Residual Noise Level, Main Out, Muted: -85 dBu, A-Weighted
Inputs
- Mic (Balanced XLR): 8
- Remote Controlled Storable Gain: Yes
- Gain Range: 0 dB ÷ 60 dB
- Mic Input Impedance: 3.3 kohm
- Maximum Input Level: 18 dBu
- Phantom Power +48V: Yes
- Mic/Line (XLR/TRS combo): 8
- Remote Controlled Storable Gain: Yes
- Gain Range: 0 dB ÷ 60 dB
- Mic Inputs Impedance (XLR): 3.3 kohm
- Line Inputs Impedance (TRS): 12.8 kohm
- Maximum Input Level (XLR): 18 dBu
- Maximum Input Level (TRS): 29 dBu
- Phantom Power +48V: Yes
- Balanced Line (1/4" TRS): 2
- Gain Range: 0 dB ÷ dB
- Line Inputs Impedance (TRS): 18 kohm
- Maximum Input Level (TRS): 18 dBu
- Stereo Line (3,5mm jack): 1
- Gain Range: 0 dB ÷ dB
- Line Inputs Impedance (TRS): 15 kohm
- Maximum Input Level (TRS): 18 dBu
Outputs
- MAIN OUT (Balanced XLR): 2
- Output Impedance: 50 ohm
- Maximum Output Level: 24 dBu
- MIX OUT (Balanced XLR): 8
- MIX OUT (1/4" TRS): 2
- Output Impedance: 150 ohm
- Maximum Output Level: 24 dBu
- PHONES (6,8mm jack Stereo Line): 1
- Output Impedance: 50 ohm
- Maximum Output Level: 18 dBu
- AES3 (XLR): 1
Processing
- Signal Processing: 32 Bit Floating Point
- A/D-D/A conversion: 24 Bit @ 48.0 kHz
- Headroom: 20 dB
- Buss: 16
Input Processing
- Source Selector: Yes
- Polarity: Yes
- High Pass Filter: Yes
- Delay: 100 ms
- Gate: with Gain Reduction meter
- PEQ: 4 Band
- Compressor / De-Esser on Inputs: 1 - 16 (with Gain Reduction meter)
Output Processing
- Delay: 250 ms
- GEQ: 30 Band
- PEQ: 8 Band
- Compressor / Limiter: with Gain Reduction meter
- MIX OUT: [1 ÷ 8]
- Delay: 250 ms
- PEQ: 8 Band
- Compressor / Limiter: with Gain Reduction meter
- Real Time Analyzer: Yes
- Delay: 250 ms
Effects
- Internal FX: 4
- FX1: Reverb (Hall, Room, Plate, Ambience)
- FX2: Reverb (Hall, Room, Plate, Ambience)
- FX3: Delay (Stereo, Modern, Vintage, Dual, ER)
- FX4: Modulation (Chorus, Flanger, Tremolo)
Multitrack
- Number of Tracks: 20
- A/D-D/A conversion: 24 Bit @ 48.0 kHz
- SD Multitrack Format: WAV, 24Bit, 48.0kHz
- Recording: 20 Channels
- Playback: 20 Channels
- A/D-D/A conversion: 24 Bit @ 48.0 kHz
- USB Audio Interface Format: WAV, 24Bit, 48.0kHz
- Upstream: 24 Channels
- Downstream: 24 Channels
USB Drive Play/Rec
- A/D-D/A conversion: 24 Bit @ 48.0 kHz
- USB Drive Recording: 2 Channels @ WAV, 24Bit, 48.0kHz
- A/D-D/A conversion: 16 Bit @ 44.1, 48.0, 88.2, 96.0 kHz
- USB Drive Playback: 2 Channels @ WAV/MP3/AIFF, 16Bit, 44.1,
- 48.0, 88.2, 96.0kHz
Standard Compliance
- CE marking: Yes
Physical Specifications
- Cabinet/Case Material: Metal
- Height: 131mm/5.16"
- Width: 388mm/15.28"
- Depth: 428mm/16.85"
- Weight: 7.9kg/17.42lbs
Package Shipping Information
- Height: 215 mm / 8.46 inches
- Width: 580 mm / 22.83 inches
- Depth: 506 mm / 19.92 inches
- Weight: 9 kg / 19.84 lbs
| Manufacturer | RCF |
|---|---|
| SKU | 306988 |
| Shipping Weight (kg) | 9.000000 |
| MPN | 17140093 |
| Channels | 20 channels |
